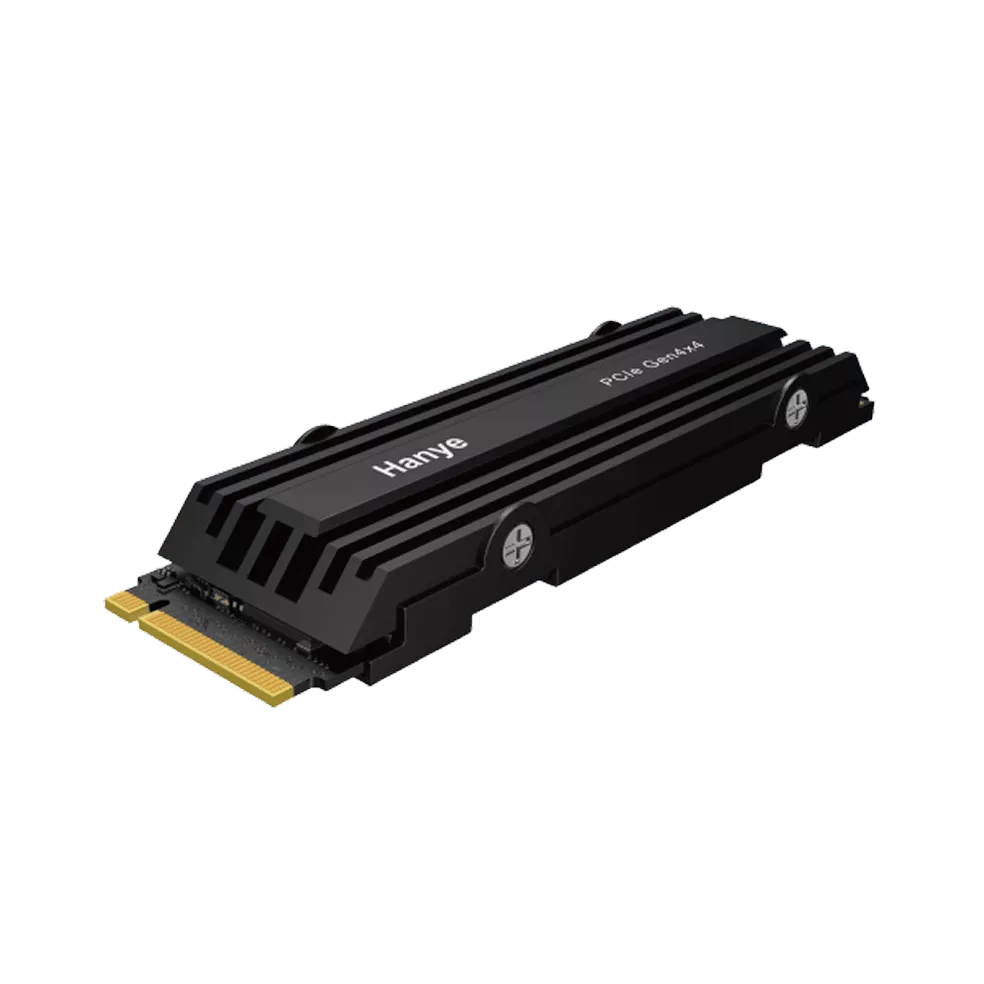

HE80-2TNLHS
Equipped with heatsink, suitable for high-performance gaming PCs and PS5
Product Features
Overwhelming Speed
Accelerates the launch of games and applications with overwhelming speed.
PCIe Gen4x4 Compatible
Supports PCIe Gen4x4 for smooth operation even under heavy loads, and is compatible with PS5.
3D NAND Technology
Employs 3D NAND technology to achieve high durability and reliability.
Large Capacity Design
A large-capacity design provides ample storage space for the latest games and updates.
Product Specifications
| Item | HE80-2T-EB | HE80-2TNL-EB |
|---|---|---|
| Model | HE80-2T-EB | HE80-2TNL-EB |
| Capacity | 2TB | 2TB |
| Form Factor | M.2 2280 | M.2 2280 |
| Interface | M.2 NVMe/PCIe Gen4x4 | M.2 NVMe/PCIe Gen4x4 |
| Sequential Read (Max) | 7400MB/s | 7300MB/s |
| Sequential Write (Max) | 6500MB/s | 6300MB/s |
| TBW | 1200TB | 1200TB |
| Dimensions (mm) | SSD Body 80.0±0.13 x 22.0±0.13 x 2.15±0.08 | SSD Body 80.0±0.13 x 22.0±0.13 x 2.15±0.08 |
| Operating Temperature | 0~70℃ | 0~70℃ |
| Storage Temperature | -40~85℃ | -40~85℃ |
| Operating Voltage | 3.3V ±5% | 3.3V ±5% |
